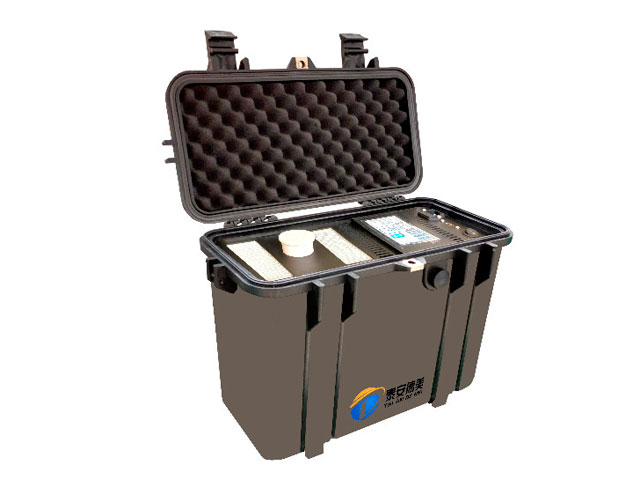

DY-GTLY Field Dry Block Temperature Calibrator(-20℃-150℃)

DY-GTLY Field Dry Block Temperature Calibrator

DY-GTLY Field Dry Block Temperature Calibrator(-20℃-150℃)

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

Field dry body furnace series, designed to help solve special environmental site, special requirements of the field temperature calibration problems!

The rugged design of the field dry furnace withstands harsh field conditions and delivers laboratory-level performance in terms of accuracy, stability, response speed, and temperature field uniformity.

The portability and ruggedness of the field dry body furnace make it easy and fast to perform temperature calibration under adverse environmental conditions.

Conform to the standard

Prevent solids from entering the test Pass

Test Pass for waterproof protection

Test Pass that can be stored at harsh ambient temperatures

Test Pass that can be run at harsh ambient temperatures

[Product Features]

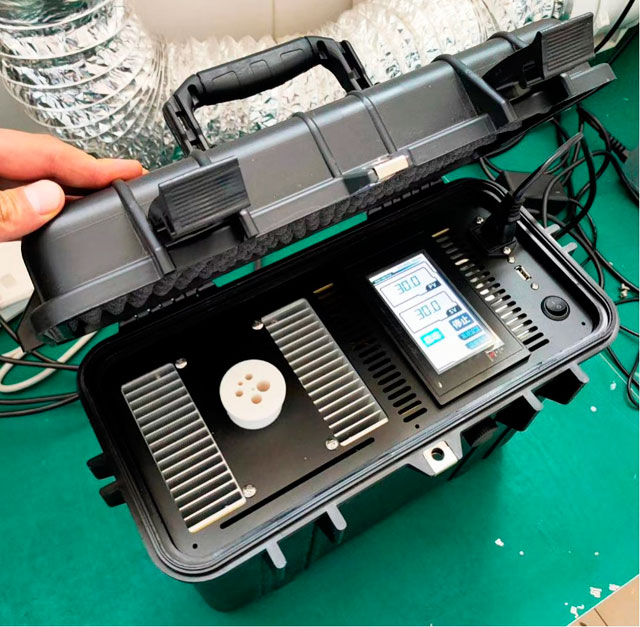

1. Humanized design, 4.3-inch touch screen operation, convenient and fast;

2. Adopt advanced modular structure, easy to maintain;

4. Direct operation of heating and cooling, rapid heating and cooling;

5. According to the requirements of customers, you can access the language interface of any place in the world for convenience of export.

[Technical Indicators]

◆ Temperature Control Range :(-20--150)℃/(0--150)℃

◆ Resolution: 0.1℃

◆ Stability: ±0.1℃

◆ Accuracy: ±0.2℃

◆ Control Mode: Touch Screen

◆ Check Hole Depth: 150mm

◆ Diameter of Heat Block: 30mm

◆ Calibration Hole Diameter: 4mm, 6mm, 6mm, 8mm, 10mm(Customizable)

◆ Power Supply: 220V AC 50HZ

◆ Power Consumption: ≤500W

◆ Heating Rate: ≥5℃ per minute

◆ Cooling Rate: ≥1℃ per minute

◆ Overall Dimension: 410mm* 230mm *340mm

◆ Weight: 8.5KG

◆ Working Conditions: At -20℃, the ambient temperature ≤22℃;When 0-150℃, the ambient temperature ≤25℃;40-85%RH

DY-GTLY Field Dry Block Temperature Calibrator

DY-GTLY Field Dry Block Temperature Calibrator

DY-GTLY Field Dry Block Temperature Calibrator(-20℃-150℃) 2020-12-9 This article was read 3678 Times
