DY-HT3 Blackbody Furnace(300℃~1000℃)

DY-HT3 Blackbody Furnace

DY-HT3 Blackbody Furnace(300℃~1000℃)

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

A black body is defined as an object that absorbs all external radiant energy and simultaneously radiates all its own energy.

Overview: Main technical indicators of black body: black body emissivity, black body cavity diameter, temperature uniformity and radiation temperature uncertainty.

So in order to ensure the quality of black body products, usually black body is designed according to the temperature segment.

Usually what we call boldface is artificial boldface.

The emissivity of the artificial blackbody is close to, but not equal to, 1.

The main function of the black body is to produce standard radiation at a given temperature.

Therefore in the temperature measurement is mainly used to verify a variety of radiation thermometers, such as optical pyrometer, infrared thermometer, infrared thermograph and so on.

Black body in the industry is mainly used in the field of temperature measurement, the main product is black body furnace.

In the calibration and verification of radiation thermometers, the comparative method is usually adopted, that is, through the radiation source of high stability (usually black body radiation source) and other supporting equipment, the temperature reproduced by the standard apparatus and the temperature reproduced by the radiation thermometer are compared, in order to judge whether it is qualified or to give the calibration results.

As a standard radiation source, the standard black body is mainly used to calibrate radiation thermometers, infrared thermometers and radiation temperature sensing detectors.

At present, our company has advanced black body technology, full product range and wide temperature range of black body series products.

The product is small in size, light in weight and easy to carry. It is not only suitable for the use of radiation thermometers in the laboratory calibration of measuring institutions at all levels, but also for on-site calibration.

[Product Features]

1. More portable and lighter.Higher accuracy.

2. Human-machine interface, Chinese display, touch operation, beautiful and generous.

3. One-key temperature setting, easy to operate.Rapid heating, temperature control.

4. Can copy the language interface of any place in the world according to customers' requirements for export convenience.

Product advantage

1) Novel appearance design, integrated structure of furnace body and temperature control instrument.

2) Isothermal black body cavity, with only one cavity mouth, cavity mouth radiation evenly distributed along with the spectrum, cavity mouth emissivity above 0.995, resolution up to 0.1℃.

3) Heat insulation between the heating body and the shell, special software is used for pressure limiting heating, no high-power power transformer is required.

4) Automatic temperature control is adopted, which is safe and reliable with fast temperature rise and good temperature stability.

5) Easy to operate, small in size and light in weight, easy to carry, suitable not only for laboratory calibration, but also for on-site calibration.

[Technical Indicator]

ModelDY-HT3
Temperature Range300℃~1000℃
Control ModeTouch Screen
Temperature Resolution0.1℃
Temperature ControlPID Automatic Control
Cavity DiameterΦ50mm
Emissivity≥0.995
Temperature StabilityLarger than 0.1℃ and 0.1% T (T is the radiation source temperature)
Temperature UniformityLarger than ±0.15℃ and 0.15% T (T is the radiation source temperature)
Power Supply220V  AC  50HZ
Power1600W
Dimension(L×W×H)610mm×280mm×410mm
Weight20Kg

Note: other special requirements can be customized according to the needs of users

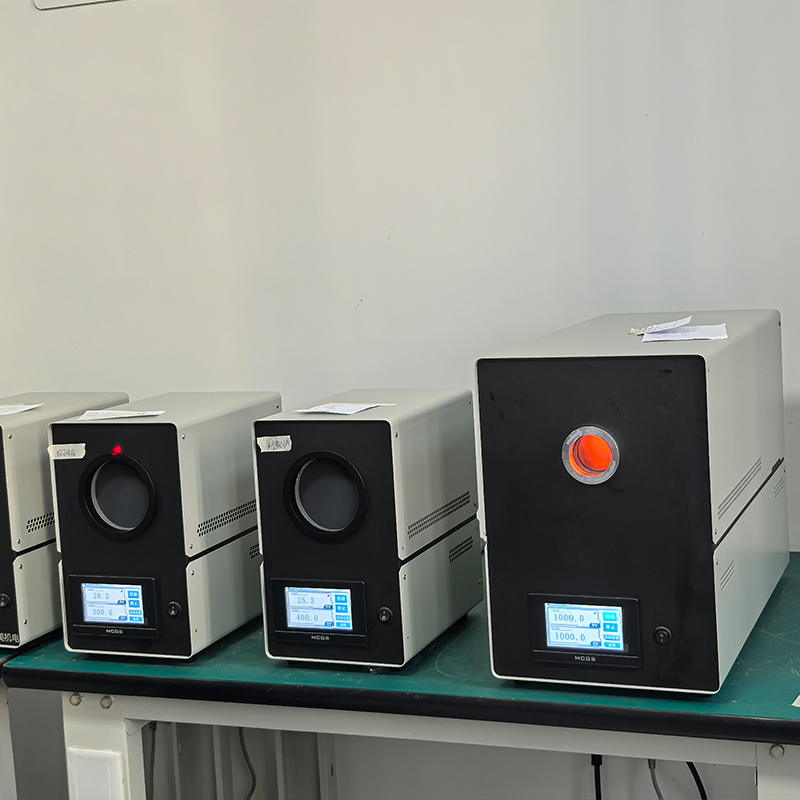

DY-HT3 Blackbody Furnace
